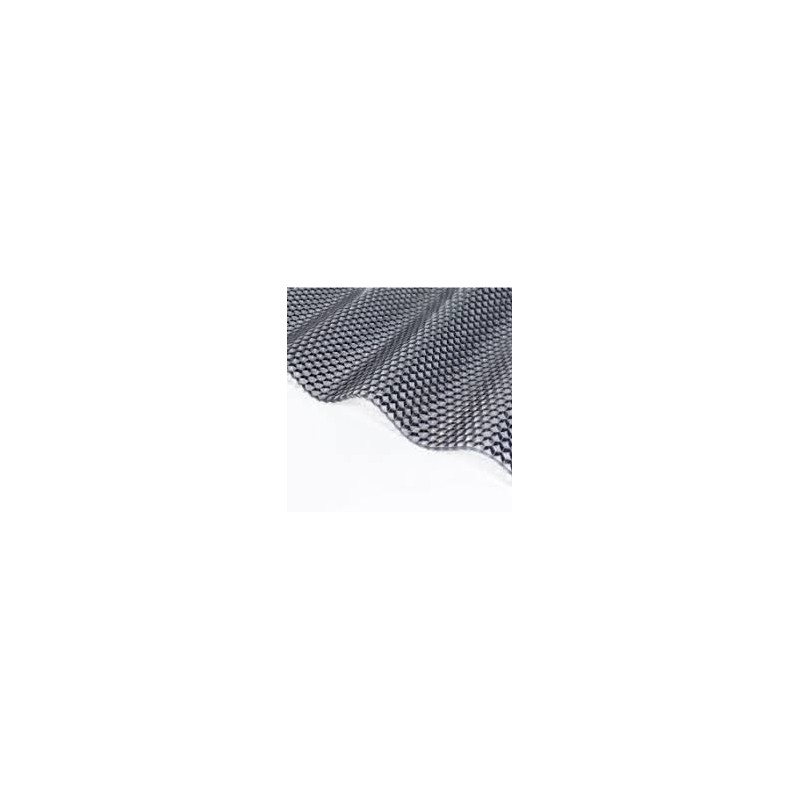

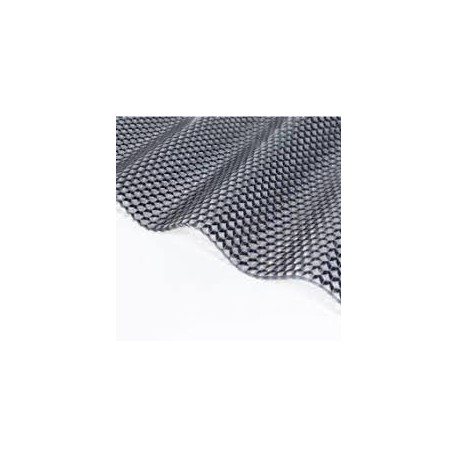

Corrugated PC 2.6mm 76/18 Prisma GRAY
New
Polycarbonate impact-resistant corrugated sheets. Used in the construction of gazebos and canopies. The material requires a substrate.
The material thickness is 2.6 mm, the rafters with a pitch of 1100 mm. The material is resistant to shock and destruction.
Available sheet sizes:
wave 76/18 2.6x1045x3000 mm
wave 76/18 2.6x1045x6000 mm
More info
2.6 mm thick hail-resistant corrugated board with Prisma surface treatment, profile 76/18. PRISMA evenly diffuses light, reduces glare and increases comfort in the seating area. Pitch to rafter 1100 mm.
Sheets can be used for the construction of various canopies, canopies, greenhouses, terrace roofs, gazebos, parking lots, conservatories, swimming pools, balconies, and also as a decorative material for finishing building facades.
Technical data:
- PC corrugated board 2.6 mm, wave 76/18, prism surface
- Material weight: 3.12 kg/m²

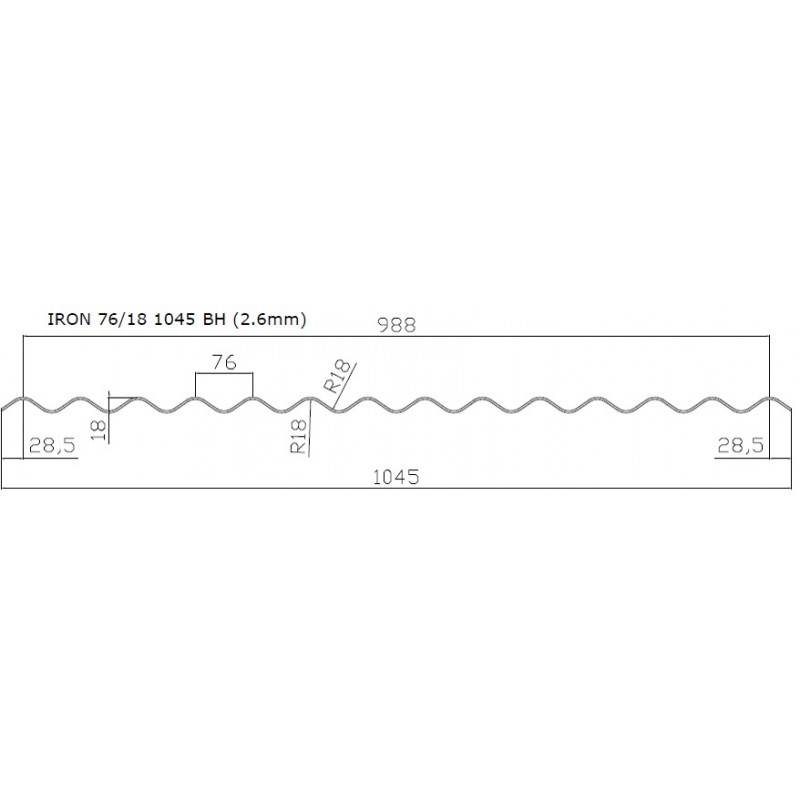

- Profile wave 76/18.
- Light transmission: 90% (clear), 63% (grey), 33% (bronze)
- Thermal expansion: 0.7 mm/mºC
- Operating temperature: -40 to 100 ºC
- Softening temperature: 130 ºC
- Impact resistance (CharpyTest, un- notched): impact resistant
- The material is impact and hail resistant.
- The material is easy to cut with all hand tools.
- Rafter pitch 1100 mm
- The material is recyclable
- Color options - transparent, bronze, grey
- EU fire class B1
